Double Offset High Performance Butterfly Valve
Double Offset High Performance Butterfly Valve

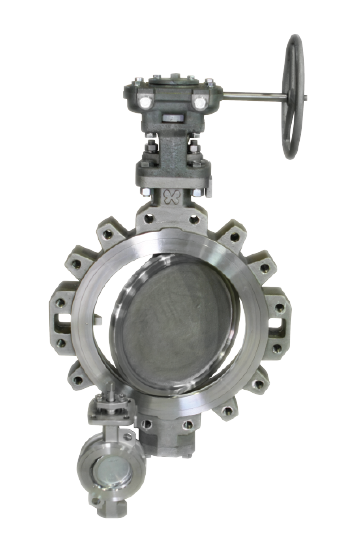

The Sable Controls V1300 Series double offset high performance butterfly valve is available from 2” through 16” ANSI 150. For double dead-end service, we stock lug bodies. Materials of construction include A351 Gr. CF8M stainless bodies and discs. The shafts are made of A182 Gr. F316 SS for its torsional strength and corrosion resistance. The seats are RTFE and bi-directional. The valves are equipped with a floating retainer ring which eliminates cold flow of the seat providing positive tight shut off. The valves have an adjustable packing gland with RTFE packing. The mounting pads are ISO 5211 compliant for ease of automation.
The valves are tested in accordance to API 598 and designed to API 609 standards. They are NACE MR0175 compliant.
